Foulard
Laboratory apparatus for dyeing textile samples and foulards.

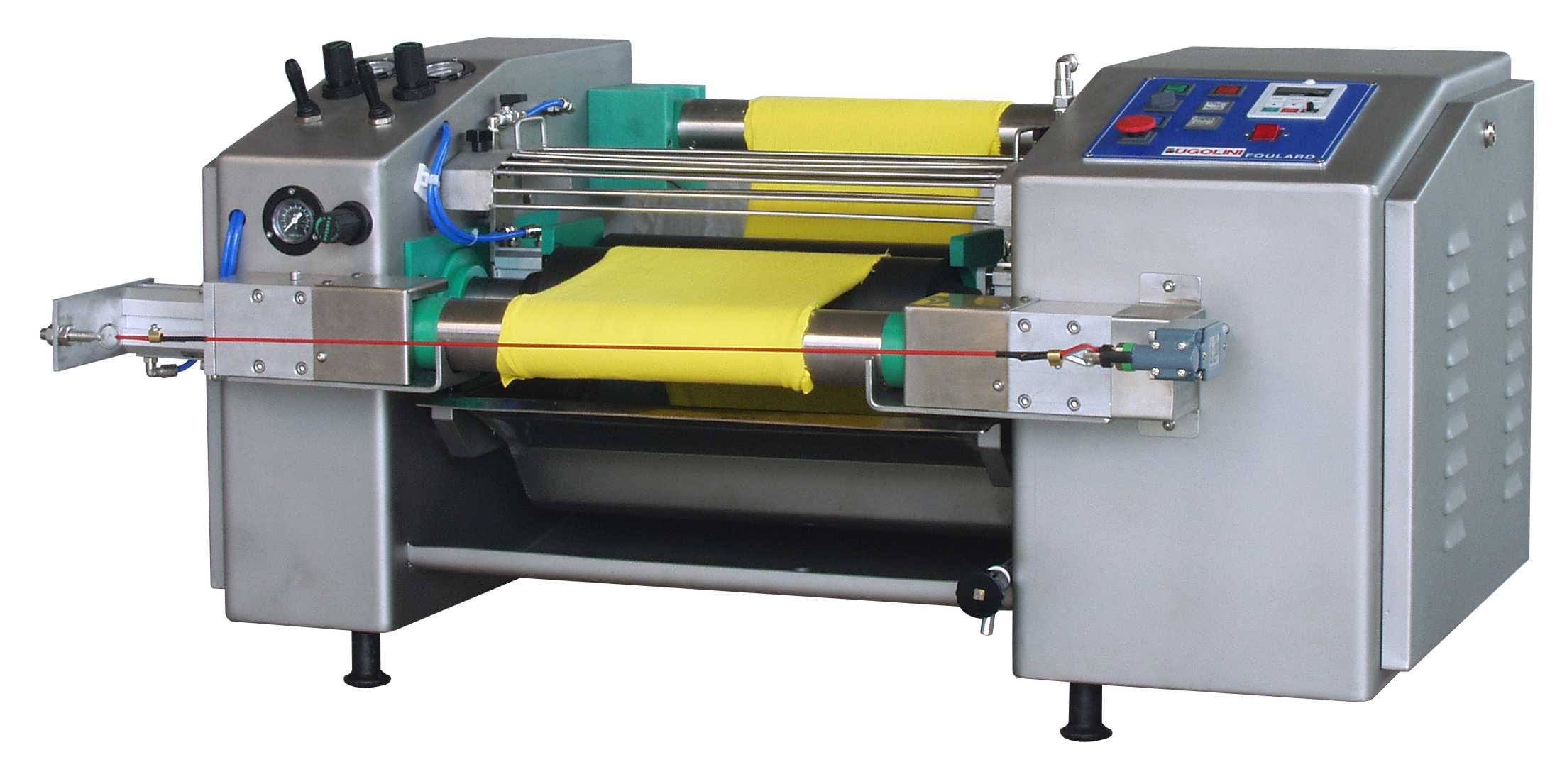

Foulard
Laboratory apparatus for dyeing textile samples and foulards.
The fabric is dyed in the bath, wrung by cylinders and rolled up for storage. Available in the following models:
DV250 – DV400 – DV550 – DV800.
Structure made of stainless steel. Cold bath dyeing system:
– discontinuous between the cylinders;
– continuous with appropriate bath below. Pressure between the cylinders generated by pneumatic pistons exercising a linear force. Adjustable cylinder speed through inverter.
Dati tecnici
| Lunghezza cilindri | 300 - 450 - 600 - 850 mm |
|---|---|
| Altezza utile di lavoro | 250 - 400 - 550 mm |
| Pressione cilindri | max 40 da N/cm, min. 3,9 da N/cm |
| Velocità | da 2/10 m/min |
| Volume bagno vaschetta | min. 500 max 1500 ml |
| Volume bagno tra i cilindri | 300 / 400 ml |
| Dimensioni ingombro | (1360/1660) x 730 x H 550 mm |
| Voltaggio | 230 V Monofase, 400 V Trifase, 50/60 Hz |
